Description
Advantage of Direct To Film Printer
High cost performance
Equipped with Epson XP600 Head,it greatly reduces starting costsis since it’s lower cost than I3200 A1 heads.
Precise printing
The machine is equipped with a 42cm printing width, which perfectly adapts to A2 size printing needs and meets personalized customization requirements.
Convenient
The automatic take-up system saves the time and energy of manually adjusting printing materials, making it more convenient and efficient.
Environmentally friendly ink
The DTF ink used is green and environmentally friendly, making printing more sustainable.
Main Features of Direct To Film Printer
White ink circulation system
Maintain the continuous flow of ink and prevent nozzle clogging to achieve uninterrupted production.
Industrial grade precision platform
Keep the printing flatness at 0-0.5mm, making the printing surface flatter and printing accuracy higher.
Lifting trolley frame
Automatically adjust the printing height during the printing process to avoid collision or damage to the nozzle.
Anti-warping clamps
Apply even pressure to eliminate wrinkles on the material surface and make the printing surface smoother.

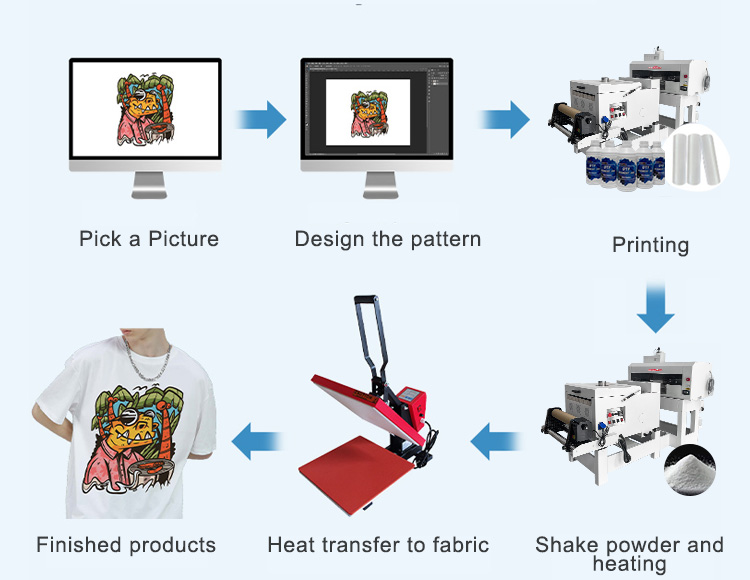

Printing Process of Direct To Film Printer
Product Specification
| Product | KJ-302A DTF printer | ||
| Model | KJ-302A | ||
| Printhead | 2*EPSON I3200A1 | 2*EPSON I1600A1 | 2*EPSON XP600 |
| Printing Speed | 4pass: 12sqm/h, 6pass: 9sqm/h | 4pass: 6sqm/h, 6pass: 5sqm/h | 4pass: 5sqm/h, 6pass: 4sqm/h |
| Color | 5 colors (C, M, Y, K, W) | ||
| Max Media Width | 430mm | ||
| Max Print Width | 420mm | ||
| Ink Type | Waterbased pigment ink | ||
| Media Type | PET film | ||
| Heating System | Intelligent embedded heating system & powder melt machine | ||
| Feed & Take up System | Equipped | ||
| Ink system | Automatic ink supply white ink circulating and stirring | ||
| Clamp | Combined anti-warping clamps | ||
| Power Electric Supply | 110V/220V,50-60HZ | ||
| Power | 350W-3400W | ||
| RIP Software | Maintop,photoprint,CADlink(optional) | ||
| Working Environment | Temperature: 18-32℃ , humidity: 46-65% | ||
| Printer Size | 1100*510*625mm, 70kg | ||
| Shacker Size | 800*510*510mm, 50kg | ||
| Packing Size | Printer: 1320*730*850mm, 105.5kg , 0.480cbmShaker: 880*610*730mm, 70kg , 0.440cbm | ||
