Description
Features of KingJet KJ-604UV UV DTF Printer
3D Dimensional visual effects
Four i3200 printheads, CMYK+W+V+gilding varnish printing, bright colors, showing bling-bling visual effects.
automatic laminating and peeling
Fully automatic laminating and peeling off the waste film and gold foil, as well as removing glue, save time and labor.
More stable printing
Equipped with a front stepper motor, double the power than ordinary printers, good pulling force, and more stable stepping.
Uniform lamination
The heating rod heats evenly, making the product lamination uniform, and greatly improving the printing speed.
Convenient operation
The intuitive control panel and button logo for hot stamping and waste film discharge make operation easier.
Efficient curing
It is equipped with UV lamp + UV water cooling system to achieve more efficient and high-quality curing.

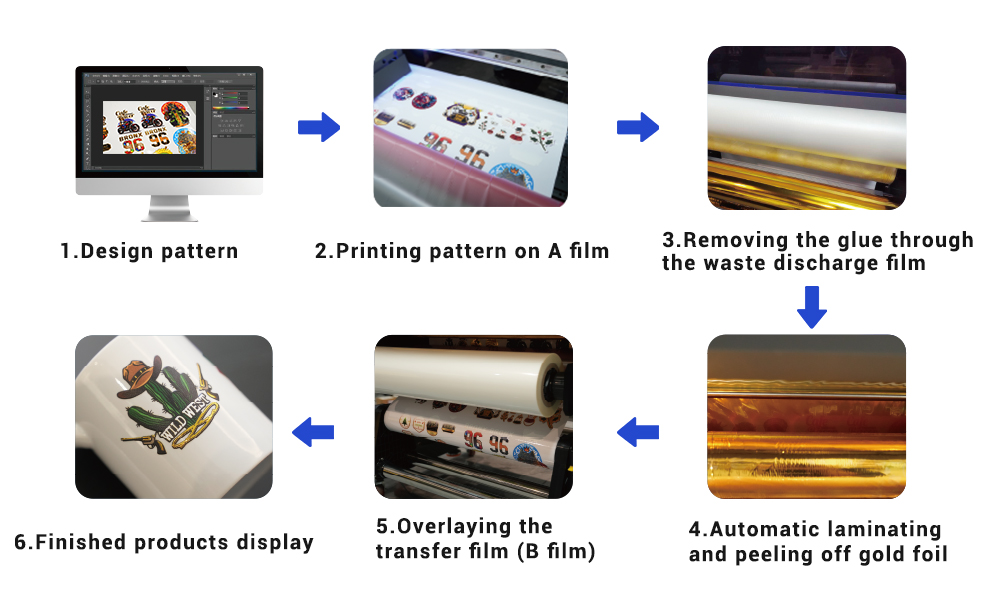

Printing Process of UV DTF PRINTER
Product Specification
| Product | KJ-604GUV UV DTF Printer |
| Model | KJ-604GUV |
| Printhead | 4*EPSON I3200-U1 |
| Printing Speed | 4sqm/h |
| Quality Mode | 2sqm/h |
| Max Print Width | 600mm |
| Color | CMYK+W+V+gold varnish |
| Ink Type | UV ink |
| Ink Supply System | White ink stirring |
| Media Type | UV DTF AB film, waste discharge film, and gold foil |
| Curing System | UV LED curing system |
| Lamination System | Integrated gold stamping, waste discharging, and laminating system |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint |
| Input Power | AC110V/220V, 50HZ/60HZ |
| Working Environment | Temperature: 18-32℃, humidity: 46-65% |
| Machine Size | 1900*850*1420mm, 280kg |
| Water Tank Size | 110V: 420*355*220mm, 11.5kg; 220V: 360*300*220mm, 10.5kg |
| Machine Packing Size | 2440*1000*860mm, 380kg |
| Water Tank Packing Size | 110V: 530*430*440mm, 13kg; 220V: 450*390*350mm, 12kg |
