Description
Advantages of Direct To Film Printer
Multi-color options
In addition to C, M, Y, W, and k colors, you can also choose RGBO and neon colors to meet the printing needs of different colors.
Low maintenance rate
Anti-collision lifting trolley frame device to avoid damage to the print head and prolong service life.
Integrated operation
Intuitive powder shaking function operation page, freely adjust the powder shaking speed and temperature.
Environmentally friendly ink
DTF ink is environmentally friendly and can print children’s clothing.
Main Features of Direct To Film Printer
Elevating aluminum capping system
Protect the nozzle from external damage, as well as automatically clean and moisturize the nozzle.
White ink circulation system
White ink is circulated and stirred to effectively avoid nozzle clogging and prevent malfunctions.
Automatic take-up system
No manual operation required, automatic loading and take-up of printed materials.
Pressing roller
Ensure that the PET film does not shift during the printing process and achieve precise printing.

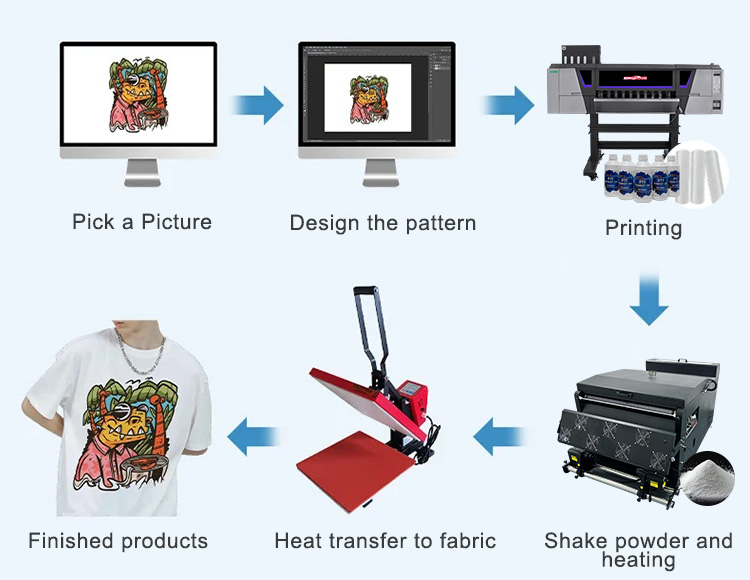

Printing Process of Direct To Film Printer
Product Specification
| Product | KJ-804 DTF printer |
| Model | KJ-804 |
| Printhead | 4*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30 sqm/h |
| 6 Pass | 20 sqm/h |
| 8 Pass | 16 sqm/h |
| Max Media Width | 900mm |
| Max Print Width | 830mm |
| Ink Type | Waterbased pigment ink |
| Color | 5 colors (C, M, Y, K, W) (RGBO and neon colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Media Thickness | 1mm |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-8KW |
| Working Environment | Temperature : 18-32℃ , humidity : 46-65% |
| Machine Size | Printer: 2010*795*1600mm, 180kg ; shaker: 1950*1060*1080mm, 220kg |
| Packing Size | Printer: 2720*890*790mm, 240kg ; shaker: 1780*1130*1100mm, 240kg |
