Description
Product Description
Advantages of KingJet DTF Printer
- Excellent stability：Independent suction control of the front and rear mesh belt platforms ensures stable and smooth printing process.
- Low failure rate：Advanced anti-collision device, scientific and effective machine operation, longer service life.
- Humanized Setting：Newly upgrade the oil drain port to solve the problem of oil flowing everywhere.
- Environmentally DTF ink: DTF ink is green and environmentally friendly, and can be used in children’s clothing.
Main Features of DTF Printing Machine
- Environmental powder shaker: Smoke purifier and sealed circulating powder shaking environment to solve the problem of flying powder.
- Intelligent digital control panel: Multiple operating languages are optional to meet the needs of different countries and make operation worry-free.
- White Ink Circulation System:Ensures continuous circulation and mixing of white ink to avoid clogging.
- Adjustable pinch roller: Adapt to printing materials of different thicknesses to meet a variety of printing needs.
Printing Process of DTF Printer
Product Specification
| Product | KJ-602 DTF printer |
| Model | KJ-602 |
| Printhead | 2*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 15 sqm/h |
| 6 Pass | 10 sqm/h |
| 8 Pass | 8 sqm/h |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-4000W |
| Working Environment | Temperature : 18-32℃ , humidity : 46-65% |

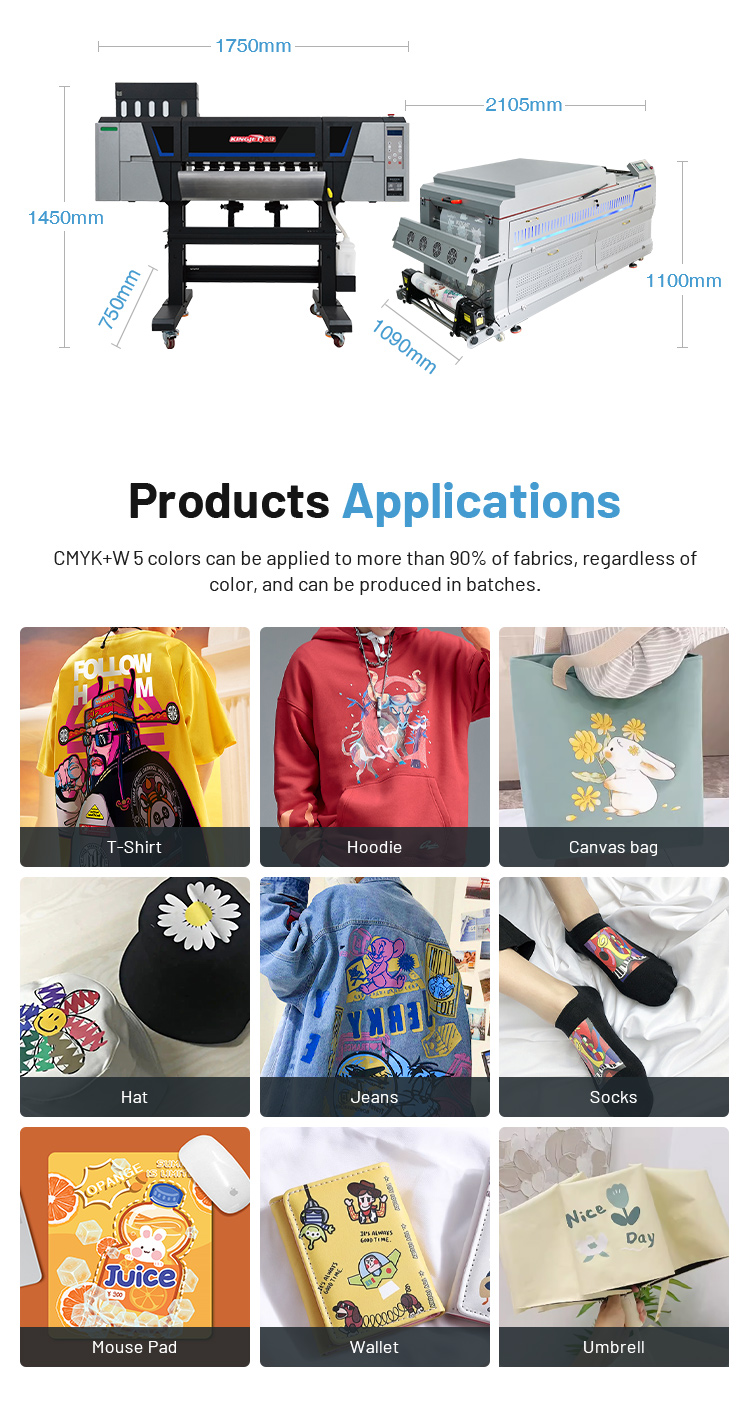

| Machine Size |
Printer: 1750*750*1450mm, 135kg ; shaker: 2105*1092*1100mm, 229kg |
| Packing Size |
Printer: 1950*820*700mm, 182kg, 1.160cbm ; shaker: 2200*1120*1136mm, 303kg, 2.320cbm |
