Description

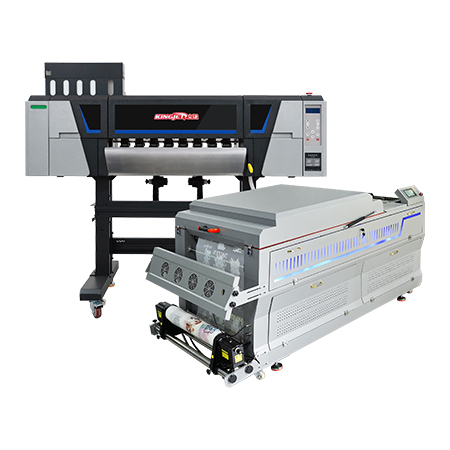

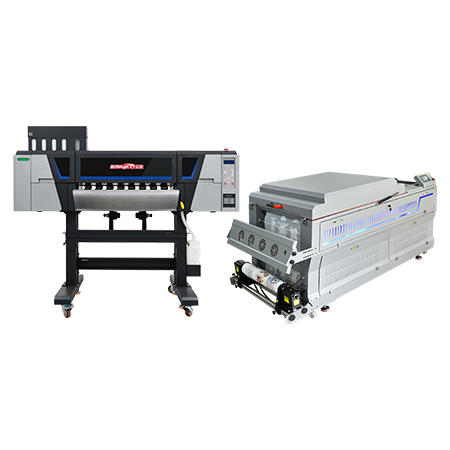

KJ-604 DTF Printer Features：
Multi-Color Options
In addition to C, M, Y, K, and W colors, you can also choose RGBO and neon colors to meet the printing needs of different colors.
Humanized Settings
Upgrade the oil drain port to automatically collect waste oil and solve the problem of oil stains flowing everywhere.
Intelligent Panel
Intelligent digital control screen with multiple operating languages available to meet various working environments.
High-Quality Printing
The DTF machine has been upgraded with higher printing accuracy, faster drying, and better printing quality.
Environmental Powder Shaker
It sealed circulation powder shaking environment to solve the problem of flying powder effectively.
Silent Guide Rail
Low noise and reduced friction between various machine parts make printing more stable and long-lasting.
White Ink Circulation
The white ink circulation system ensures smooth delivery of ink to the print head and prevents clogging of the print head.
Automatic Cleaning
Nozzle SystemThe DTF printing machines realize automatic system cleaning, anti-clogging flash spray, and moisturizing functions.
KJ-604 DTF Printer Printing Process
The printing process is simple, just need to print – shake powder – dry – transfer – product is completed
Applications of DTF Printers
DTF printers have significant advantages in the field of clothing customization. It can print patterns on a variety of fabrics, including pure cotton, polyester, nylon, treated leather, polyester fabrics, 50/50 blends, and light and dark fabrics.
· T-shirts
· Hoodies
· Jeans
· Hats
· Shoes
· Umbrellas
· Bags
· Pillows
KJ-604 DTF Printer Parameters
| Product | KJ-604 DTF printer |
| Model | KJ-604 |
| Printhead | 4*EPSON I3200-A1 |
| Printing Speed | Output (sqm/h) |
| 4 Pass | 30sqm/h |
| 6 Pass | 20sqm/h |
| 8 Pass | 16sqm/h |
| Max Media Width | 730mm |
| Max Print Width | 680mm |
| Ink Type | Waterbased pigment ink |
| Color | C, M, Y, K, W (RGBO and neon colors available) |
| Ink Supply System | Continuous ink supply system |
| White Ink Cycle | Equipped |
| Media Type | PET film |
| Heating System | Intelligent embedded heating system & powder melt machine |
| Feed & Take-up System | Equipped |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| RIP Software | Maintop, photoprint, CADlink (optional) |
| Input Power | AC110V/220V, 50HZ/60HZ, 350W-4000W |
| Working Environment | Temperature: 18-32℃, humidity: 46-65% |
| Machine Size | Printer: 1850*795*1600mm, 172kg ; shaker: 2305*1092*110mm, 270kg |
| Packing Size | Printer: 2060*890*790mm, 217kg , 1.448cbm ; shaker: 2400*1120*1136mm, 330kg , 2.830cbm |
