Description
Features of All in One UV Printer
Perfect noise reduction
It is the first in China to design small holes to reduce the resonance size by observing the conch effect to achieve perfect noise reduction.
Humanized settings
A handling device for reducing the difficulty of handling and narrow door problems, the smallest 70cm door can be entered.
High wear-resistant push-pull design
With constant R&D and innovation, the push-pull slider has passed international tests and can be pushed and pulled 200 times without wear.
Three-stage heating methods
Ink sac heating + printhead base heating + secondary cartridge heating, can reduce floating ink and ensure the quality of printing.
10-color solution
Customized design of secondary ink cartridges can achieve 10-color solutions, and the pattern colors are more vivid.
Intelligent cleaning printhead
Single-group cleaning reduces printhead loss and easily achieves material and time savings.

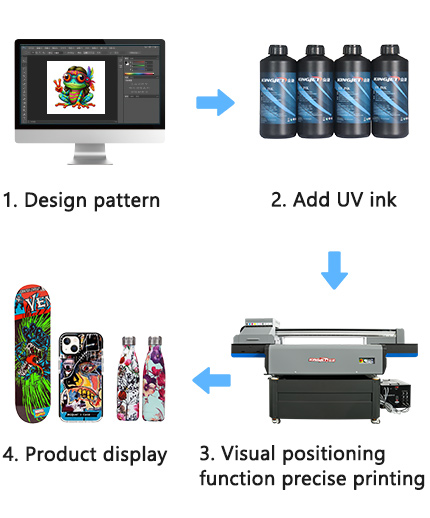

Printing process of All in One UV Printer
Product Specification of UV printer
| Product | KJ-1060 UV Flatbed Printer |
| Model | KJ-1060UV |
| Print head | EPSON I3200-U1 |
| Print head | 2-4 pcs optional |
| Print accuracy | 720*2400 (dpi) |
| Print height | 0-800mm |
| Printing Speed | Output (sqm/h) |
| High Speed | 720*1200 dpi-4pass 19m²/H ; 720*1800 dpi-6pass 12m²/H ; 720*2400 dpi-8pass 8.75m²/H |
| Medium Speed | 720*1200 dpi-4pass 12.96m²/H ; 720*1800 dpi-6pass 8.5m²/H ; 720*2400 dpi-8pass 6.35m²/H |
| Low Speed | 720*1200 dpi-4pass 9.25m²/H ; 720*1800 dpi-6pass 6m²/H ; 720*2400 dpi-8pass 4.5m²/H |
| Ink Type | UV LED ink |
| Ink Color | C/M/Y/K/LC/LM/LK/LKK/W/V |
| Software | Uitra Print/Photoprint/GMG |
| Transport Interface | USB-2.0/3.0 |
| Image Format | TIFF/JPG/PNG/PDF/EPS |
| Computer System | Win7/Win8/Win10 |
| Input Voltage | AC-220V (±10%) , 50HZ , ≤16A |
| Operating Powder | <530W |
| Machine Size | 2155*1110-1160 (mm), 330kg |
| Package Size | 2250*1300*1000 (mm), 380kg |
