Description
UV hybrid printer Advantages
High stability
High-strength mesh belt transmission and strong vacuum adsorption ensure accurate printing.
Low loss
Imported drag chain device reduces wire loss and production noise and longer service life.
Efficient drying
Infrared ray and fan drying ensures rapid drying of printing and improves printing efficiency.
Dual-use of roll and sheet
It can print rolls and sheets, one machine can achieve multiple functions.
UV hybrid printer Main Features
Double rail lifting trolley frame
Prevents the frame from collision as well as physically protect the printhead from damage.
Take up and feed up system
Equipped with an industrial grade strong take up and feed up system provide high-efficiency printing.
Elevating aluminum capping system
Automatic cleaning and moisturizing printhead as well as protecting the printhead from damage.
EPSON original printheads
6 EPSON original I3200 printheads, with high-precision and fast printing capabilities.

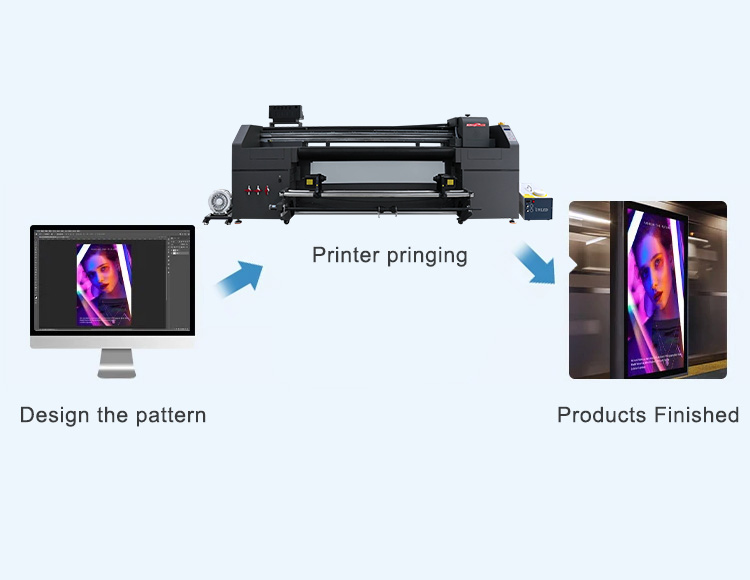

UV hybrid printer printing Process
UV hybrid printer Specification
| Product | UV hybrid printer |
| Model | KJ-1806DUV |
| Printhead | 6*EPSON I3200-U1 |
| Printing Speed | Output (sqm/h) |
| 6 Pass | 72m² |
| 8 Pass | 52m² |
| Max Media Width | 1850mm |
| Max Print Width | 1800mm |
| Platform Width | 500mm |
| Printhead Height | 2-30mm above media adjustable |
| Ink Type | UV ink |
| Color | CMYK , CMYK+W , CMYK+W+V |
| Media Type | Roll and sheet materials, leather industry, home decoration industry, advertising industry, suitable materials : leather, KT board, wallpaper, soft, film, car sticker, pvc film, etc. |
| Curing System | UV LED water-cooling curing system |
| Media Adsorption | Adjustable suction air |
| Capping & Moisturizing | Auto capping system & moisturizing system |
| Optional device | Front & rear table , positioning pole , auto-height adjustment , electrostatic rod , air expansion shaft |
| Feed and Take up System | Industrial grade strong take up and feed up system |
| RIP Software | Maintop, photoprint (optional) |
| Operate Environment | Winxp, win7, win10 |
| Working Environment | Temperature : 18-32℃ , humidity : 46-65% |
| Machine Size | 3330*1320*1615 mm , 700kg |
| Packing Size | 3900*1150*1550 mm , 830kg |
